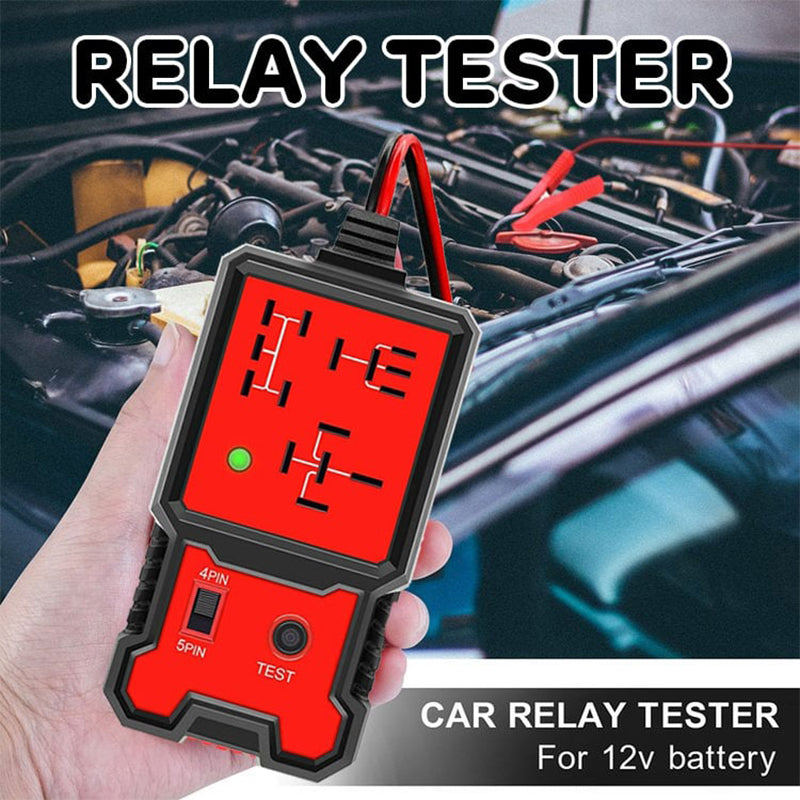

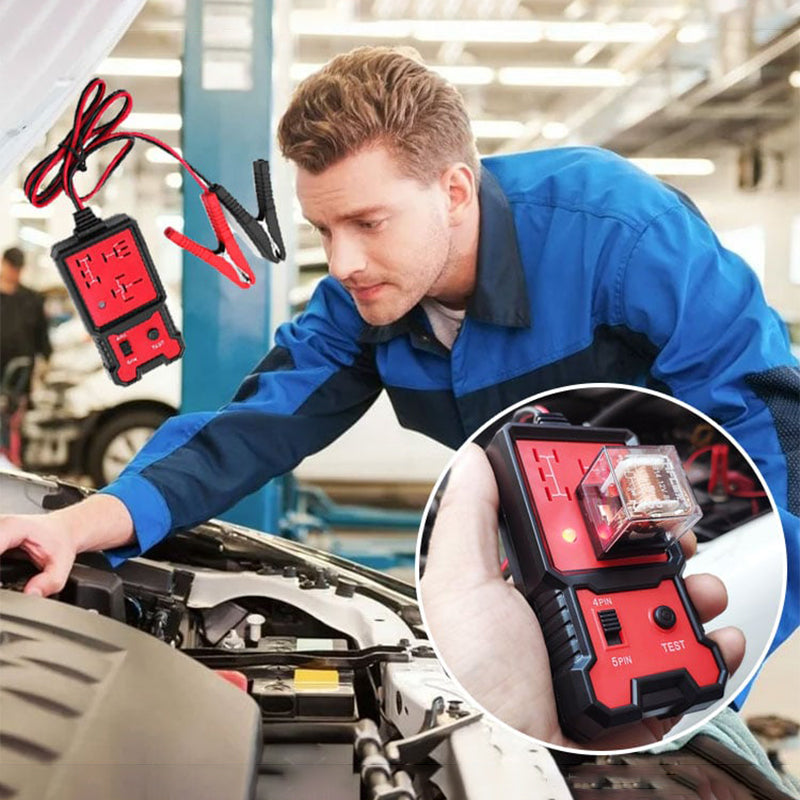

Relay Tester

Our automotive relay tester is small and portable for mobile work or easy storage. Its compact design makes it easy to use wherever you are.

Features

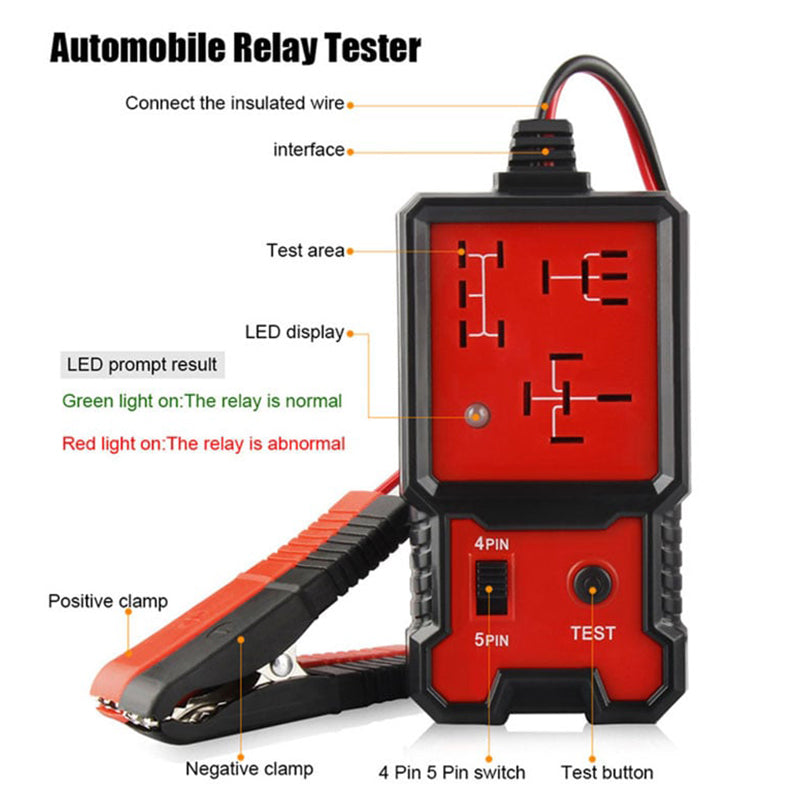

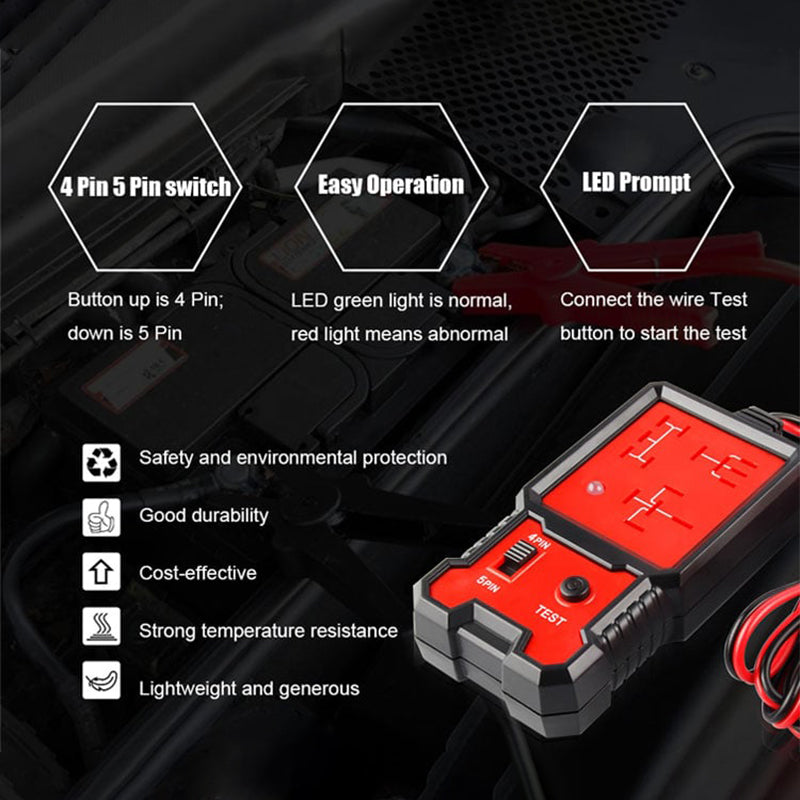

• The tester will automatically detect the position of the pin, the release time of the action, and the consistency of the relay at each test stage. If the tester lights up the green LED light, the relay is normal; if the red LED light is on, the relay is abnormal.

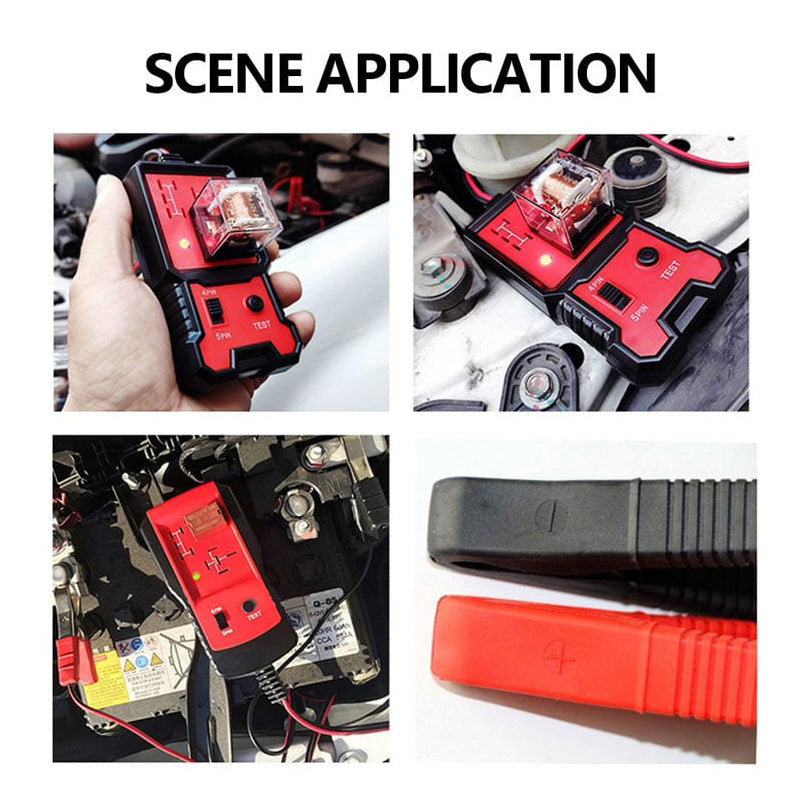

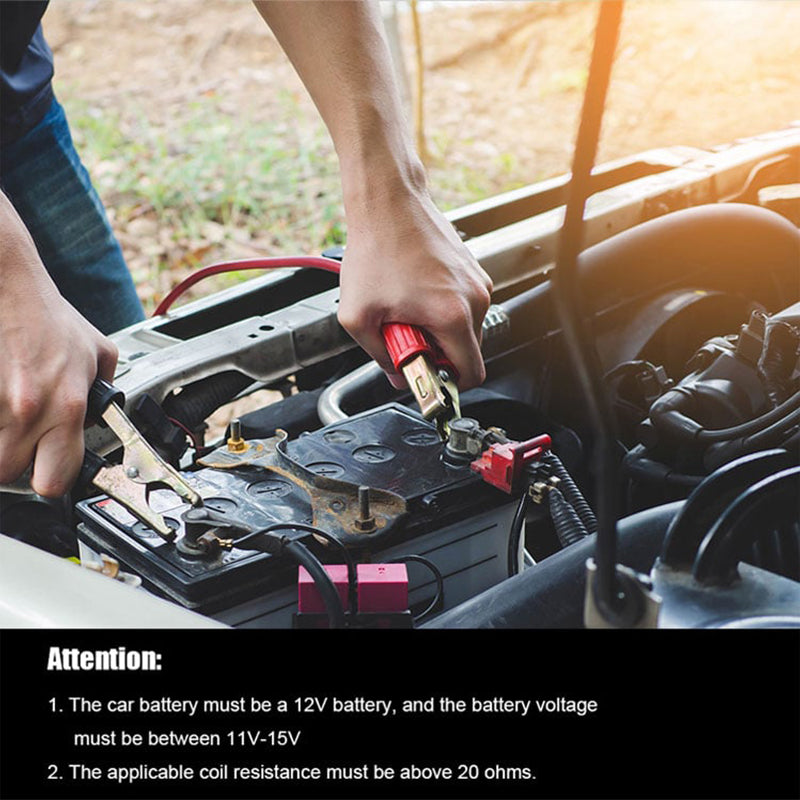

• First, clip the alligator clip of the tester on the car battery, the black clip on the negative pole, and the red clip on the positive pole. When the red LED lights up, it means the tester is ready to start testing. Check the relay before testing. Select the appropriate socket according to the pin, insert the relay into the socket, press the "test" button, the tester will automatically detect the pin position of the unknown relay.


• Compatible with most general purpose automotive relays on the market. The 11V-15V battery of the car needs to be connected during the test. The car battery must be a 12V battery, and the battery voltage must be between 11V-15V; the applicable coil resistance is preferably above 20 ohms.

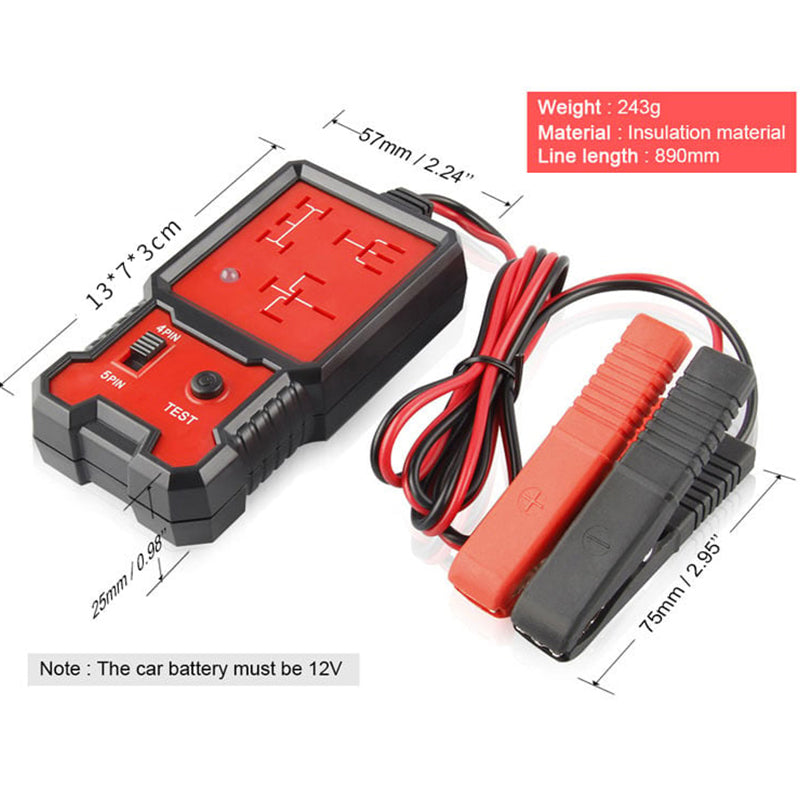

Product Specification

Product Package

• Relay Tester × 1

Notes

• Due to manual measurements, please allow slight measurement deviations.
• Due to the different display and lighting effects, the actual color of the item may be slightly different from the color displayed in the picture.
